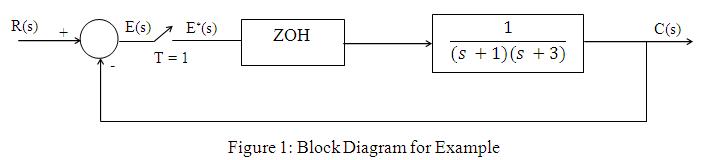

Example: Calculate the steady state errors of unit step, unit ramp and unit parabolic inputs for the system shown in Figure 1.

  Solution: The open loop transfer function is:

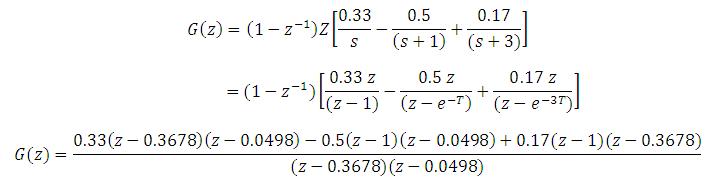

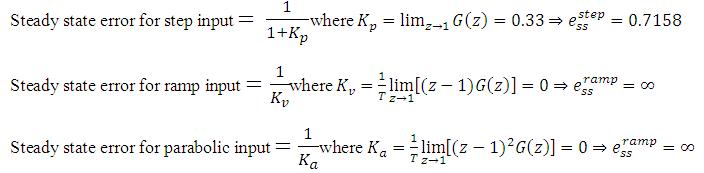

Taking Z-transform





Exercises:

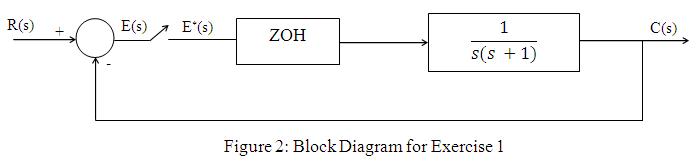

1) Calculate the steady state errors of unit step, unit ramp and unit parabolic inputs for the system shown in Figure 2. For a) T = 0.5 sec. b) T = 1 sec.

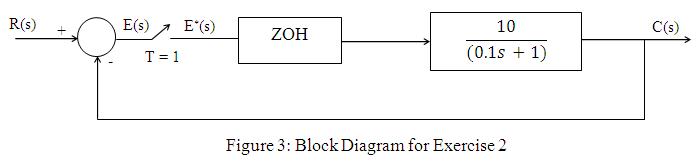

2)  Calculate the steady state errors of unit step, unit ramp and unit parabolic inputs for the system shown in Figure 3.
