Example .

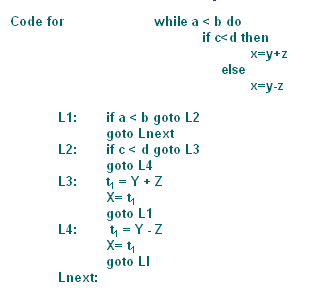

Code for while a < b do

if c < d then

x = y + z

else

x = y - z

L1 : if a < b goto L2      //no jump to L2 if a>=b. next instruction causes jump outside the loop

goto L.next

L2 : if c < d goto L3

goto L4

L3 : t1 = Y + Z

X= t1

goto L1      //return to the expression code for the while loop

L4 : t1 = Y - Z

X= t1

goto L1      //return to the expression code for the while loop

L.next:

Here too the first two goto statements can be eliminated by changing the direction of the tests (by translating a relational expression of the form id1 < id2 into the statement if id1 id2 goto E.false).
