Example

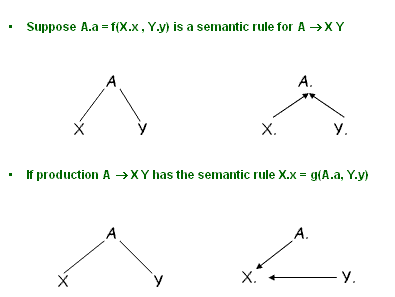

The semantic rule A.a = f(X.x , Y.y) for the production A -> XY defines the synthesized attribute a of A to be dependent on the attribute x of X and the attribute y of Y . Thus the dependency graph will contain an edge from X.x to A.a and Y.y to A.a accounting for the two dependencies. Similarly for the semantic rule X.x = g(A.a , Y.y) for the same production there will be an edge from A.a to X.x and an edg e from Y.y to X.x.
