Shared Address

• Communication takes place through a logically shared portion of memory
  • User interface is normal load/store instructions
  • Load/store instructions generate virtual addresses
  • The VAs are translated to PAs by TLB or page table
  • The memory controller then decides where to find this PA
  • Actual communication is hidden from the programmer

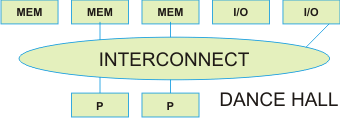

• The general communication hw consists of multiple processors connected over some medium so that they can talk to memory banks and I/O devices
  • The architecture of the interconnect may vary depending on projected cost and target performance
• Communication medium

• Interconnect could be a crossbar switch so that any processor can talk to any memory bank in one “hop” (provides latency and bandwidth advantages)
• Scaling a crossbar becomes a problem: cost is proportional to square of the size
• Instead, could use a scalable switch-based network; latency increases and bandwidth decreases because now multiple processors contend for switch ports
