Iteration Space
- Concept associated with the loops
- Contains one point for each iteration of the loop
- If a statement in one iteration dependes on a statement in another iteration then dependence is represented by an edge from source to target (called iteration space dependence graph)
for i = 2 to 9 do
x[i] = . . .
= . . . x[i-1] . . .
endfor |
|
- Space requirement too large
- Compiler can not always determine number of iterations
Iteration Vector
Each iteration is assigned a vector
iv = (I1, I2, . . ., In)
Where Ik is the value of loop index variable of kth nested loop at that iteration.
|

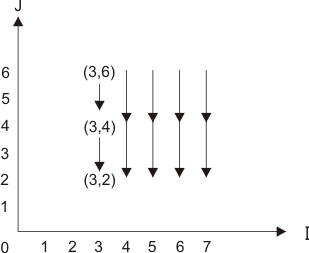

for i = 3 to 7 do
for j = 6 to 2 step -2 do
a[i,j] = a[i,,j+2] + 1
endfor
endfor |
|
|
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
|
|
|
|
