Reaching Definition

• Definition: Assignment of a value to a variable
• A definition d of a variable reaches a point p if there is a path from d to p and value of a variable is same as assigned at d
• Use iterative forward bit vector problem

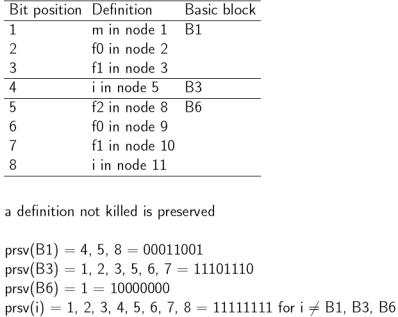

• A bit vector of a 8 bit can be used to represent all the definition
• Initial condition
  in(entry) = = 00000000
  in(i) = = 00000000 for all nodes i
• If an instruction re-defines a variable then it is killed

Gen: Definitions generated in a basic block and not subsequently killed in it
gen(B1) = 1, 2, 3 = 11100000
gen(B3) = 4 = 00010000
gen(B6) = 5, 6, 7, 8 = 00001111
gen(i) = = 00000000 for i 6= B1, B3, B6

Out: Definitions which reach at the end of a basic block
out(i) = = 00000000 for all i
A definition reaches end of a basic block iff either

• It is generated in the basic block OR
• It reaches in and is preserved
