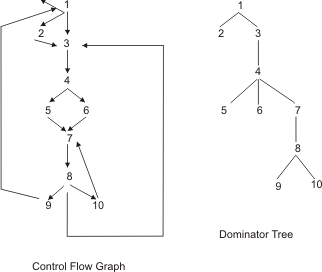

Algorithm to Find Dominators
D(n0) := {n0};
for n in N-{n0} do D(n) := N;
while changes to any D(n) occur do
for n in N-{n0} do
D(n) := {n} ∪ ∩ D(p); |
Loop Detection
- Search for a back-edge such that a → b is an edge and b dom a.
- Given a back edge a → b
- Find set of nodes that can reach node a without going through node b
- And node b
- These nodes form a natural loop with b as header.
- Given back edge a → b natural loop is a sub graph which contains a, b and all the nodes which can reach a without passing through b
|
