In a centralized scheme, a single hardware device, referred to as a bus controller or arbiter is responsible for allocating time on the bus. The device may be a separate module or part of the processor.

In distributed scheme, there is no central controller. Rather, each module contains access control logic and the modules act together to share the bus.

It is also possible to combine different device identification techniques to identify the devices and to set the priorities of the devices. As for example multiple interrupt lines and daisy chain technologies can be combined together to give access for more devices.

In one interrupt line, more than one device can be connected in daisy chain fashion. The High priorities devices should be connected to the interrupt lines that has got higher priority.

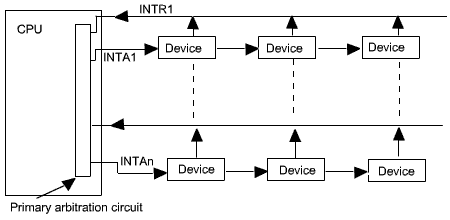

A possible arrangement is shown in the Figure 6.8.



Figure 6.8: Possible arrangement to handle multiple interrupt
