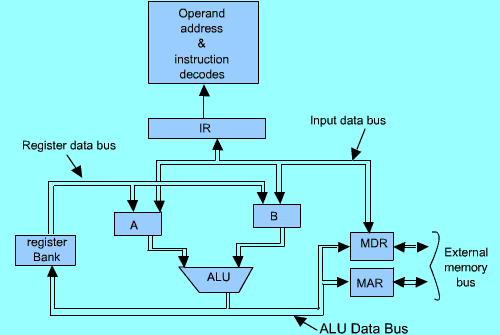

Like two bus organization, we can use bus tie to connect the input bus and output bus. When the bus tie is enable, the information that is present in input bus is directly transferred to output bus. We may use one bus tie G1 between input data bus and ALU output bus and another bus tie G2 between register data bus and ALU output data bus.
