Analysis of large number of programs has shown that a number of instructions are executed repeatedly. This may be in the form of a simple loops, nested loops, or a few procedures that repeatedly call each other. It is observed that many instructions in each of a few localized areas of the program are repeatedly executed, while the remainder of the program is accessed relatively less. This phenomenon is referred to as locality of reference.

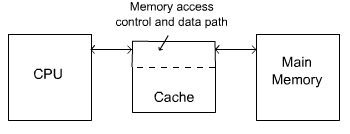

Figure 3.13: Cache memory between CPU and the main memory
