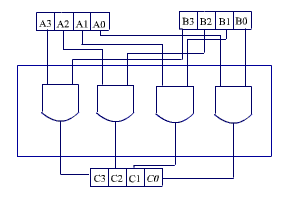

If we want to construct a circuit which will perform the AND operation on two 4-bit number, the implementation of the 4-bit AND operation is shown in the Figure-2.5.




                                                                Figure2.5: 4-bit AND operator
