Exercise 17

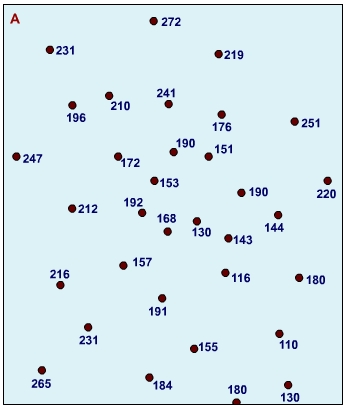

Ex.17-1 On the basis od spot elevations in meters given in Fig. 1 draw contours at 20 m interval.

Exercise Figure 17-1

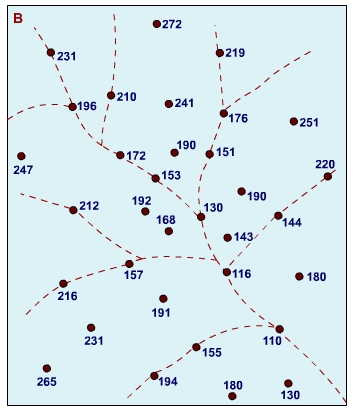

Ex.17-2 Fig. 2 shows the same area with stream courses in addition to the spot elevations. Draw the contours, in this case also, at 20 m interval.

Exercise Figure 17-2
