This type of communication is a initial stage in formation of present ITS
system.
Communication takes place between infrastructures.
Evolution of I2I services led to more advanced vehicle communications.
They are the easy means of communications.
But handling them on a large is an area of concern.
Fig. 1 and 2 show the I2I
communications in case of ramp metering.

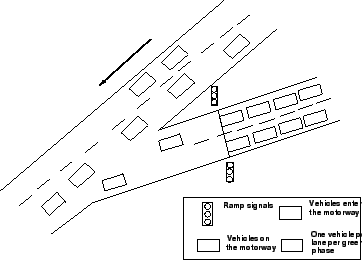

Figure 1:
On-ramp metering-1
![\begin{figure}\centerline{\epsfig{file=qfIts2OnRampMetering1.eps,width=8cm}}
% (Source: [1])}
\end{figure}](img1.png) |

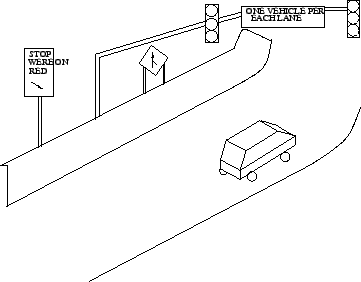

Figure 2:
On-ramp metering-1
![\begin{figure}\centerline{\epsfig{file=qfIts2OnRampMetering2.eps,width=8cm}}
% (Source: [1])}
\end{figure}](img2.png) |
|
|
| | |
|
|
|
