The real trajectory of gas and particles is difficult to analyze. The particles laden gas enters the cyclone from the sideway (see top view) at a high flow rate and moves downward in a swirling/ spiral path.

Solid particles are thrown outward radially due to centrifugal force. They strike the walls of cyclone and settle down. Gas, on the other hand, will move radially inward, then upward through the least hydrodynamically resistance – path to the exit.

Gas moving in spiral reaches the apex of the cone, then moves upward in a smaller spiral
() path to the exit at the top, as the opening at the bottom is filled with solid particles. For the gas, the least resistance – path is the exit at the top. For the particles, the least resistance- path is the exit at the bottom.

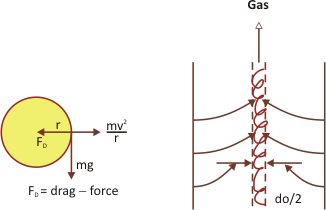

Mechanistically, if the centrifugal force acting on the particles is larger than the drag (inward) by the gas, the particles will strike the walls and settle down, else they will move inward alongwith the gas. At a radius r, where these two forces are equal, particle will rotate in equilibrium and move downward till they hit the slant walls and are collected. Gas on the other hand has a very high upward flow rate at the center, typically in the core-diameter of . Any particle in the zone will be carried upward.
