Module 10: Filtration
  Lecture 35: Plate and frame press filter, Rotary filter



While designing the plate and frame press filter, dismantling and re–assembling times, removal of cake from each frame, and other operations such as washing and drying of cakes should also be taken into consideration.

Rotary Filter

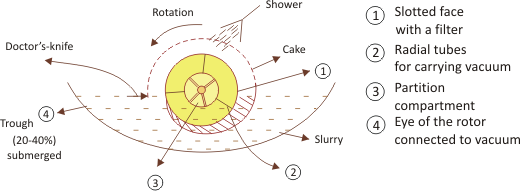

(Fig. 35b)


See the schematic above. The portion of the cylinder (rotary drum) submerged in the trough is subjected to vacuum. A layer of solids builds upon the drum as the liquid is drained through cloth, slots, compartments, pipe to the tank, which collects the filtered water.

In the washing/drying zone; vacuum is removed; cakes are removed by scrapping it off with a knife, doctor blade. The process is continuous whereas the plate and frame press filter is a batch process.
