Liquid Fuel Combustion (Contd.)
Assumptions |
|
- Single droplet in quiescent atmosphere.
- Droplet temperature is uniform.
- Density of liquid fuel much higher than the gas phase.
- Fuel is a single component with no solubility for gases.
- Flow velocities are assumed to be low
- Single step irreversible reaction!
Thin flame approximation.
- Constant thermo-physical properties.
- Unity Lewis number.
- Radiation heat transfer is neglected.
- No other phase is formed in the liquid fuel droplet.
|
|

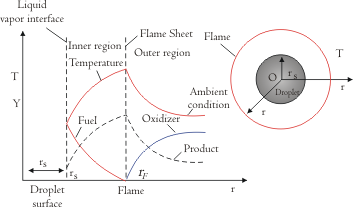

(Figure 30.2) |
|
|
|
|
|
