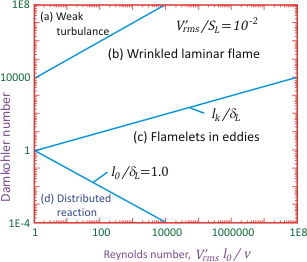

Borghi Diagram
|
- The plot of Da against
 on a log-log scale
- Depicts various regimes of turbulent flames
|
(Figure 27.1)
|
Weak turbulent flame
|
- Upper region of the Borghi diagram
|
Wrinkled laminar flame
|
- Region between
 and
- Chemical reaction takes place in a thin zone
|
Flamelets in eddies
|
- Region between upper bold line
 and
|
Distributed reaction regime
|
- Region below
- Reaction sheets are distributed in the turbulent flame surface
- This type of combustion can be established in a well stirred reactor.
|
